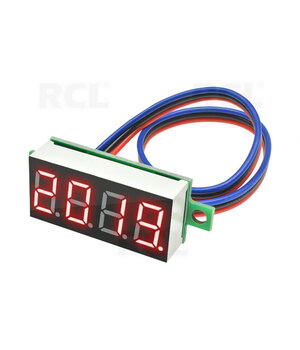

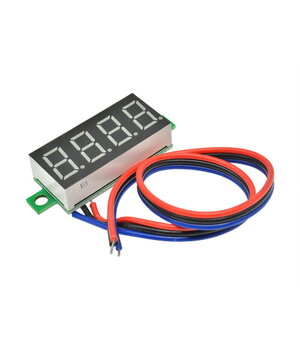

VOLTMETER - MODULE 0.36" LED red, DC 0-100V, 4 digits, 3 wires
Code ATMV26R- Weight 8.00g
E-shop price: 7,90 €
| Amount: | 5+ | 10+ |
| Price: | 7,03 | 6,50 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (1) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (1) | |
Description
High accuracy
Reverse connection protection

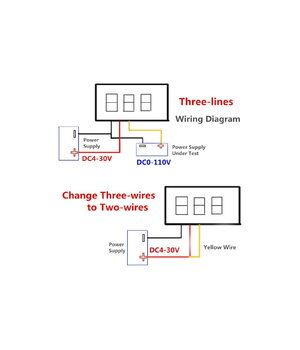

Three-wire connection (2-wire connection can be used for measuring voltage up to 30V DC).
Features:
Measuring range: DC 0.000V-100.0V
Display mode: 0.36 inch LED
Power consumption: ≤20MA
Operating voltage: 4-30V (recommended range 5V-12V)
Frequency of measurement update: 3 times per second
Test accuracy: 0.3% (maximum error = range X0.003)
Product size: 41×15×11 mm
Mounting hole: 2.9 mm
Cable length: ~150mm
Conclusions: red - positive working pole, black - common negative pole, blue - positive measuring pole
