VOLTMETER - MODULE LED red, 4-100V DC
Code ATMVRA1- Weight 11.00g
E-shop price: 4,90 €
| Amount: | 5+ | 10+ |
| Price: | 4,26 | 2,78 |
| 3,56 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Item description

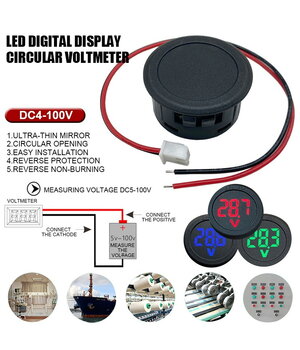

Small in size and easy to install, it is perfect for testing voltages in the range of 4-100V DC

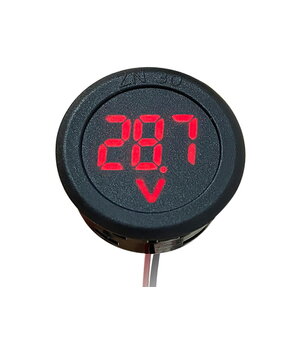

3-digit LED digital, large numbers, quick and easy to read
The diameter of the mounting hole is 30mm
Reverse connection protection when the cable is connected backwards or incorrectly
Features:
Display color: red
Body color: black
Material: plastic

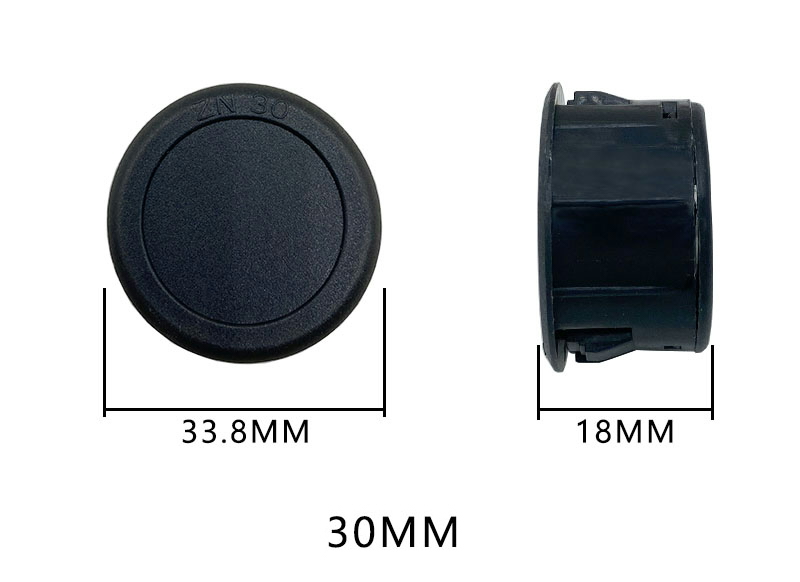

Size: ø33.8x18mm
Cable length: 200mm
Installation hole size: ø30mm
Measuring voltage: 4-100V
Minimum voltage: 3.8V DC
Tolerance: ±1%
Input impedance: >100Kom
Operating current: red <15mA
Refresh rate: about 300mS/time
Operating temperature: -10℃~65℃
