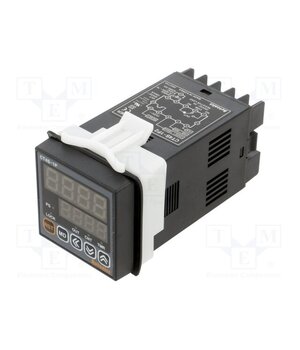

CT4S-1P2 Counter: electronical; LED x2; time/pulses; 0,001s÷9999h; SPDT

• Supply voltage AC — 24V AC
• Operating temperature — -10°C…55°C
• Supply voltage DC — 24V DC…48V DC
• Number of operation modes — 15
• —
• Kind of output 1 — SPDT
• Counter operation modes — ON and OFF delay
• Mounting — on panel
• —
• —
• Kind of input 2 — PNP
• Mounting hole diameter — 45x45mm
• —
• Counter operation modes — pulse after a specified time
• —
• Counter operation modes — delayed switching off
• —
• Type of counter — electronical
• Output 1 electrical parameters — 30V DC / 5A
• Kind of counter — progressive/reversing
• Body dimensions — 48x48x100mm
• Kind of input 1 — NPN
• —
• Type of counted signal — time/pulses
• The additional control inputs — RESET
• Kind of display used — LED x2
• Manufacturer — AUTONICS
• Kind of input 1 — PNP
• —
• Counter operation modes — delayed switching on
• —
• —
• Output 1 electrical parameters — 250V AC / 5A
• —
• Electrical connection — screw terminals
• Kind of input 2 — NPN
• —
• Counting range — 0,001s...9999h
• —
