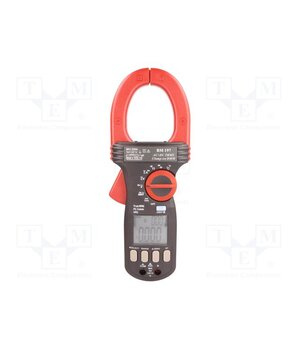

BM197 Meter: multifunction; digital,AC/DC pincers type; Øcable: 55mm

• Temperature measuring range — -50°C…1k°C
• AC current measuring range — 2kA
• Capacitance measuring range — 2mF
• DC voltage measuring range — 1kV DC
• AC voltage measuring range — 1kV AC
• DC current measuring range — 2kA
• Resistance measuring range — 40MΩ
• —
• Sampling — 5x/s
• Measurement — temperature
• Measurement — capacitance
• —
• —
• Frequency measuring range — 10...1999Hz
• —
• Measurement — frequency
• —
• —
• Conform to the norm — CAT IV 1000V
• Measurement — DC current
• Standard equipment — test leads
• Continuity test — <10Ω
• —
• Measurement — AC voltage
• —
• True effective value measurement — True RMS
• —
• —
• —
• Kind of display used — LCD
• —
• Measurement — resistance
• —
• —
• Measuring instrument features — auto and manual ranging
• Manufacturer — BRYMEN
• —
• —
• —
• Dimensions — 264x43x97mm
• —
• —
• Measuring instrument features — HOLD function
• Measuring instrument features — contactless voltage detector
• —
• —
• —
• —
• —
• Measuring instrument features — automatic power-off
• Display parameters — 3,5 digit (1999)
• Conform to the norm — EN 61010
• Measuring instrument features — REL function
• Standard equipment — drop-like K-type probe
• Kind of meter — pincers type
• —
• Interface — USB
• Kind of meter — digital
• Measuring instrument features — simultaneously measures voltage and frequency
• Type of meter — multifunction
• —
• —
• Illumination — yes
• Continuity test — acoustic indication
• —
• —
• —
• Display parameters — (6000)
• Measurement — AC current
• —
• —
• Measurement — DC voltage
• —
• —
• —
• —
• —
• —
• —
