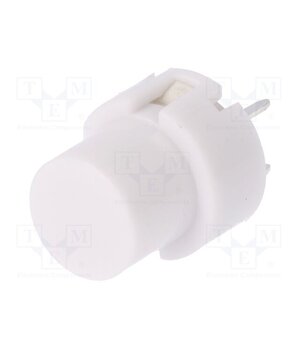

D6R00F2LFS Switch: keypad; Pos: 2; SPST-NO; 0.1A/32VDC; white; THT; Ø12x5.8mm

• Contacts pitch — 5mm…5m
• Operating temperature — -20°C…85°C
• Max. contact resistance — 100mΩ
• Electrical life — 250kcysles
• Operating Force — 2.5N
• Min. insulation resistance — 100MΩ
• Leads — for PCB
• Terminal pitch — 5x5mm
• —
• —
• Switching method — OFF-(ON)
• Body dimensions — Ø12x5.8mm
• —
• Actuator colour — white
• DC contacts rating @R — 0.1A / 32V DC
• —
• —
• —
• —
• —
• Contacts configuration — SPST-NO
• Stable positions number — 1
• Button shape — round
• Manufacturer — C&K
• Switch of type — keypad
• —
• Mounting — through-hole technology
