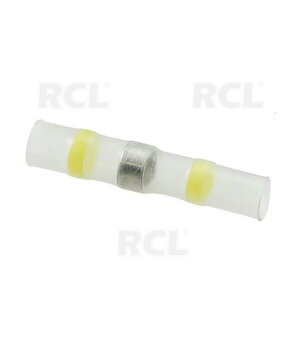

SolderSleeve Wire Splices 0.8-2.0mm², CWT-9002
Code CAS6L- Weight 1.00g
E-shop price: 0,70 €
| Amount: | 25+ | 50+ | 100+ |
| Price: | 0,60 | 0,44 | 0,32 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (60) | |
| Shop in Vilnius | Item available (25) | |
| Shop in Kaunas | Item available (19) | |
Description
The CWT-900x is an Open Barrel Splice provides electrical termination in a wide variety of interconnect applications. The SolderSleeve™ one-step terminator capabilities include terminating wires to component terminals, ground wires to cable shields, terminating coaxial cable and wire-to-wire splicing. A precisely engineered, fluxed solder preform within the heat-shrinkable thermoplastic sleeve provides a completely soldered, strain-relieved, encapsulated termination. The one-piece design of one-step terminators simplifies installation, while their transparent insulation sleeves make inspection easy.
- Small size and lightweight
- Controlled soldering process
- Cross-Section Max.: 6 mm²
- Cross-Section Min.: 4 mm²
- Material: Polyolefin
- Temperature Max.: 125 °C
- Temperature Min.: -55 °C
- Colour: Clear
