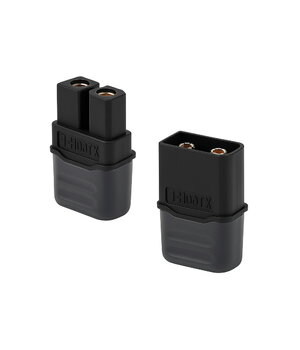

🔌 XT60H Connectors with Shield – Black

Product Description: The XT60H is an enhanced version of the popular XT60 connector, featuring a built-in shield cap for additional mechanical protection and a cleaner finish. These connectors are ideal for drones, RC cars, robotics, and other electronics projects that require a reliable high-current connection.

⚙️ Technical Specifications

• Color: Black
• Maximum Current: 60 A (continuous)
• Maximum Voltage: 500 V DC
• Contact Material: Gold-plated brass
• Housing Material: Nylon (PA) – high-temperature resistant
• Operating Temperature: -20 °C ~ +120 °C
• Mounting Type: Soldering
• Protection: Integrated end cap (protection against short-circuit and dust)
• Compatibility: Fully compatible with standard XT60 connectors

✅ Features

• 🔒 Secure and reliable connection
• 🔥 High temperature resistance
• 🛡️ Protective cap for added safety and clean cable management
• 🔁 Reusable

📦 Package Includes

• 1x XT60H Plug (Male)
• 1x XT60H Socket (Female)
• 2x Protective end caps

📌 Applications

• RC Models (Drones, Cars, Boats)
• Battery Pack Connections
• High-power LED systems
• Robotics
