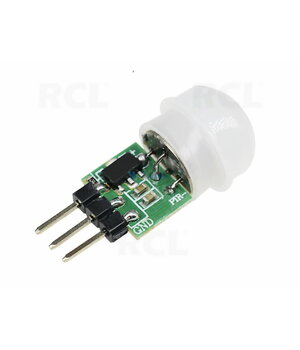

MOTION SENSOR PIR AM312
Code CJJ00042- Weight 6.00g
E-shop price: 3,00 €
| Amount: | 5+ | 10+ |
| Price: | 2,67 | 2,03 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (2) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (2) | |
Description
# Universal PIR Type Sensor
The universal PIR type sensor enables motion detection. It can be used for building alarm systems, robots, models, and similar applications. PIR sensors can be used in alarm installations and devices where motion detection is required. When motion is detected, the sensor outputs a high logic level. When motion stops, the output changes to a low logic level.
## Product Features
- The PIR type sensor is used for indoor object detection in alarm and lighting systems.
- Object detection is indicated digitally by a high logic level.
- The sensor can be connected to any starter kit such as **Arduino** or a **Raspberry Pi** minicomputer.
- **Arduino** compatible sensor.
- Detects human movement in a room at a distance of up to **3 m** from the sensor.
## Technical Data
- Operating voltage: **DC 2.7–12 V**;
- Static power consumption: **< 0.1 mA**;
- Delay time: **2 s**;
- Lock time: **2 s**;
- Trigger mode: **retriggerable**;
- Detection range: **up to 3 m**;
- Operating temperature: **-20 to +60 ℃**;
- Overall sensor dimensions (including pins): **26 × 13.5 mm**.
