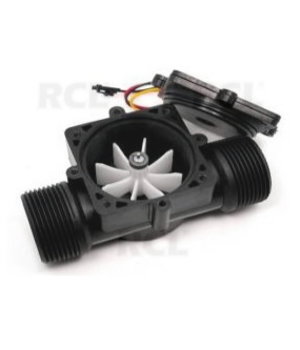

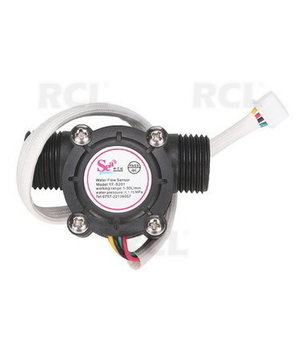

VANDENS SRAUTO JUTIKLIS 1-30L/min 2.0MPa 5V-24V DC, tinka Arduino
Code CJJ0018- Weight 52.00g
E-shop price: 6,90 €
| Amount: | 3+ | 6+ |
| Price: | 6,28 | 5,66 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (1) | |
Description
Supply voltage 5V-18V DC
Maximum supply current 15mA (at 5V)
Load current, up to: 10mA
Operating maximum temperature: +80 degrees
Operating relative humidity (without dew): 35...90%
Thread diameter: 1/2"
Connector pitch 2.54mm
Maximum available pressure 1.75MPa (17.4 bar)
Dimensions 29 x 33 x 56 mm
Microcontroller ports used 1 digital I/O
Output type Digital
Measurement range 1-30 L/min
Warning! The electronic part is not protected against water ingress.
