AIR QUALITY sensor ZP07-MP503

The ZP07‑MP503‑10 grade air quality module adopts an advanced thick‑film semiconductor gas sensor chip.

The sensor features extremely high sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohols, cigarette smoke and fragrances.

After aging, adjustment and calibration, the module provides good measurement consistency and very high sensitivity.

Features:

• Extremely high sensitivity
• Excellent long‑term stability
• Factory calibrated
• Automatic warm‑up evaluation (10 s–3 min)
• On‑board sensor fault self‑diagnosis
• Low power consumption
• Long service life
• High cost performance

Applications: Air purifiers, fresh‑air ventilation and heat‑recovery systems, intelligent integrated ceilings, air quality monitors, ventilation fans, air conditioners and other equipment used for air pollution detection and purification.

Product parameters:

• Product model: ZP07 air quality module
• Target gases: formaldehyde, benzene, carbon monoxide, hydrogen, alcohols, ammonia, cigarette smoke, fragrances, etc.
• Physical interface: XH2.54‑4P terminal socket
• Output data: 0–10 pollution level signal
• Supply voltage: 5.0 ± 0.2 V DC (no reverse‑polarity protection)
• Output data type: TTL‑level signal (built‑in 200 Ω protection resistor)
• Operating current: ≤ 60 mA
• Warm‑up time: ≤ 3 min
• Response time: ≤ 20 s
• Recovery time: ≤ 60 s
• Operating temperature: 0–50 °C
• Operating humidity: ≤ 95 % RH
• Storage temperature: −20–60 °C
• Storage humidity: ≤ 60 % RH

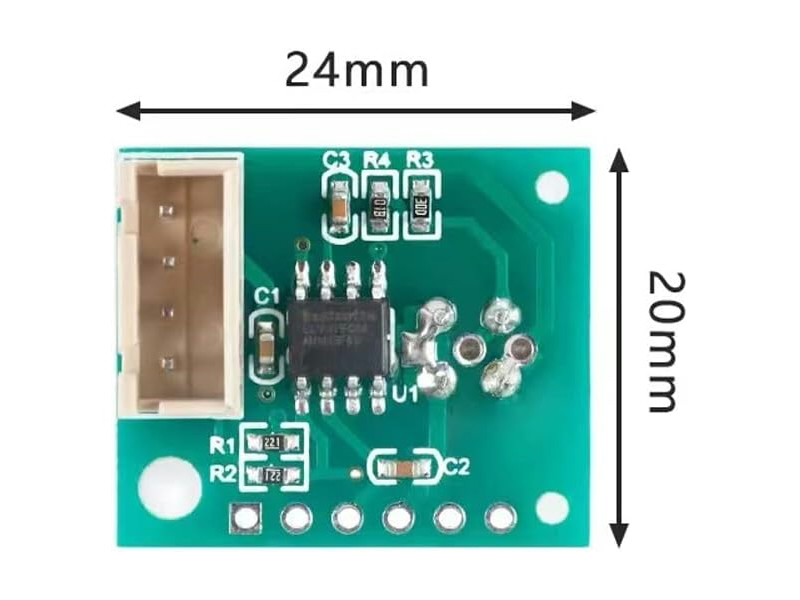

• Dimensions: 24 × 20 × 16 mm (L × W × H)
