CONNECTOR 6pin Male 2mm, 1A 100V, soldered/right-angled
Code CJK6506K- Weight 0.60g
E-shop price:
0,0655 €
0,1800 €
Minimum order: 100 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (7) | |
| Shop in Vilnius | Item available (6) | |
| Shop in Kaunas | Item available (5) | |

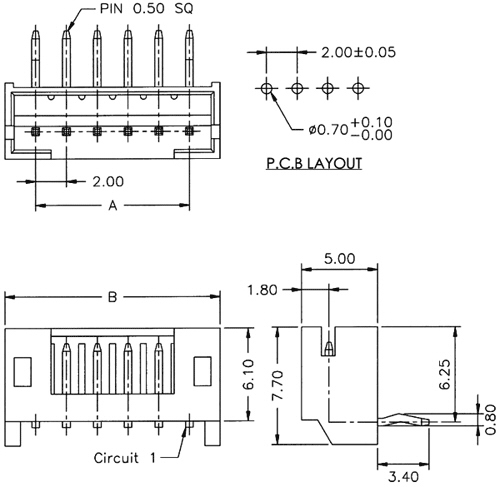

Item description
Connector: socket
Type of connector: wire-board
Kind of connector: male
Electrical mounting: THT
Maximum current: 1A
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -25...85°C
Max. operating voltage: 100V
Max. contact resistance: 20mOM
Spatial orientation: angled 90°
Enclosure material: polyamide
Width: 14mm
