CONNECTOR NPP  3pin Male 2.5mm CJK7603.jpg

CONNECTOR NPP 3pin Male 2.5mm

Code CJK7603
  • Weight 0.63g

E-shop price: 0,1500

Amount: 10+ 25+ 50+
Price: 0,1275 0,0606 0,0539
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (328)
Shop in Vilnius Item available (35)
Shop in Kaunas Item available (30)

Description

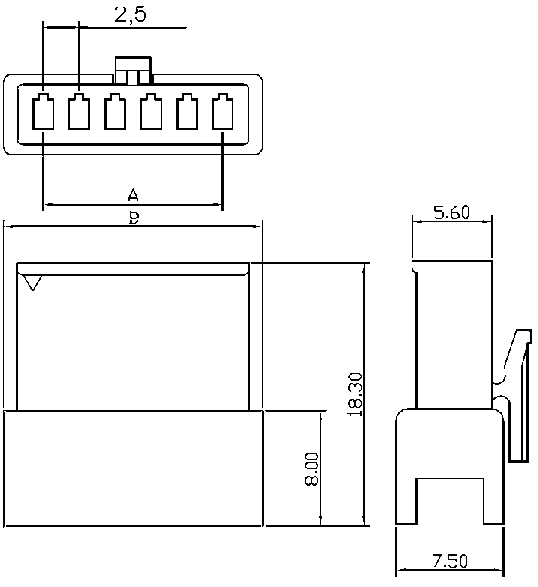

Drawing

For wire mounting. Included contacts
Response part : CJL7603
Current limit : 2 A
Voltage limit : 250 V
Breaking voltage : 800 VAC
Contact resistance : <20 mOm
Contact material : tinned bronze
Conductor diameter : 0,0804 - 0,325mm2 (AWG28-22)
Min. Insulation resistance : 1000 MOm
Operating temperature : -25°C to +85°C
Housing material : nylon 6/6
Flammability class : UL94V-0
Step : 2.5mm
Dimensions : A=5 x B=10.5mm

Specification
