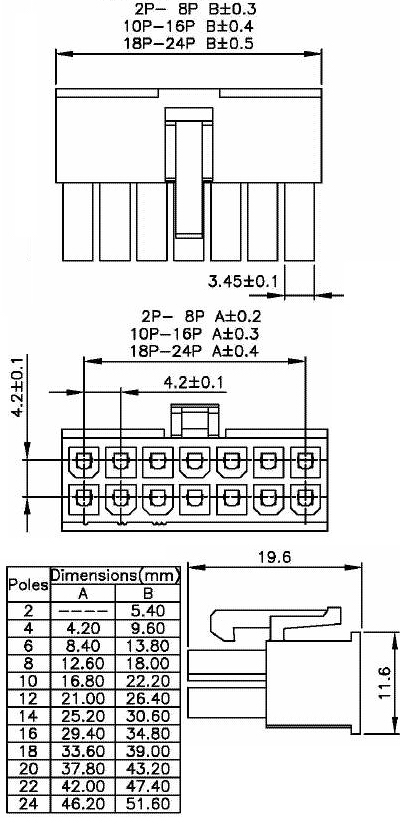

CONNECTOR 8pin Female 4.2mm, 5A 250VAC, included contacts
Code CJL7408- Weight 2.00g
E-shop price: 0,50 €
Minimum order: 50 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (20) | |
| Shop in Vilnius | Item available (14) | |
| Shop in Kaunas | Item available (10) | |
Item description
Maximum current: 5A
Voltage rating: 250V AC, DC
Enclosure material: polyamide
Locking system: latch
Contact material: brass
Contact plating: tinned
Electrical mounting: crimped
Mechanical mounting: for cable
Wire cross section: 0.32...0.82mm2
Wire size: 22AWG...18AWG
Operating temperature: -25...85°C
Flammability rating: UL94V-2
Included contacts
