CONNECTOR NPP  2pin Female 2.5mm CJL7602.jpg

CONNECTOR NPP 2pin Female 2.5mm

Code CJL7602
  • Weight 0.70g

E-shop price: 0,1500

Amount: 10+ 20+
Price: 0,1320 0,1041
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (124)
Shop in Vilnius Item available (30)
Shop in Kaunas Item available (24)

Description

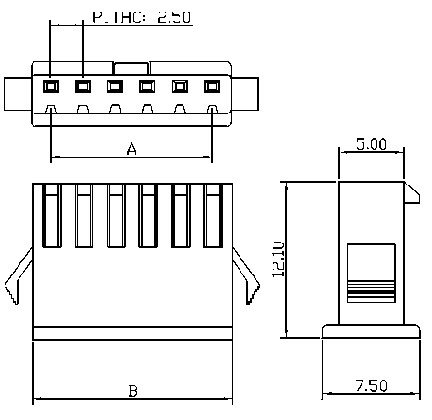

Drawing

For wire mounting. Included contacts
Response part : CJK7602
Current limit : 2 A
Voltage limit : 250 V
Breaking voltage : 800 VAC
Contact resistance : <20 mOm
Contact material : tinned bronze
Conductor diameter : 0,0804 - 0,325mm2 (AWG28-22)
Min. Insulation resistance : 1000 MOm
Operating temperature : -25°C to +85°C
Housing material : nylon 6/6
Flammability class : UL94V-0
Dimensions : A=2.5 x B=8mm

Specification
