CONNECTOR NPP  5pin Female 2.5mm,  2A 250V CJL7605.jpg

CONNECTOR NPP 5pin Female 2.5mm, 2A 250V

Code CJL7605
  • Weight 1.65g

E-shop price: 0,30

Amount: 10+ 20+
Price: 0,2550 0,1655
Minimum order: 1 Repeatability : 1

Amount

Cleanup sale, availible quantity: 18pcs.
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (17)
Shop in Kaunas Item available (1)

Description

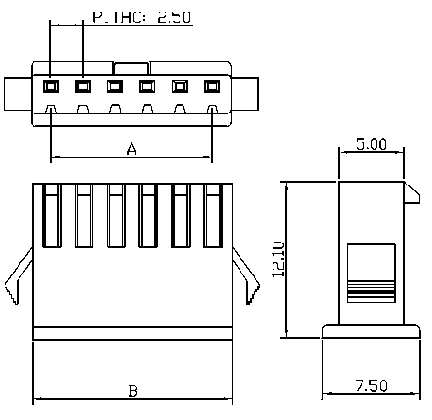

Drawing

For wire mounting. Included contacts
Response part : CJK7605
Current limit : 2 A
Voltage limit : 250 V
Breaking voltage : 800 VAC
Contact resistance : <20 mOm
Contact material : tinned bronze
Conductor diameter : 0,0804 - 0,325mm2 (AWG28-22)
Min. Insulation Resistance : 1000 MOm
Operating Temperature : -25°C to +85°C
Housing Material : Nylon 6/6
Flammability Class : UL94V-0
Dimensions : A=10 x B=15.5mm

Specification
