CONNECTOR NPP  6pin Female 2.5mm CJL7606.jpg

CONNECTOR NPP 6pin Female 2.5mm

Code CJL7606
  • Weight 2.00g

E-shop price: 0,35

Minimum order: 1 Repeatability : 1

Amount

Cleanup sale, availible quantity: 4pcs.
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (4)
Shop in Kaunas Item is not available (0)

Description

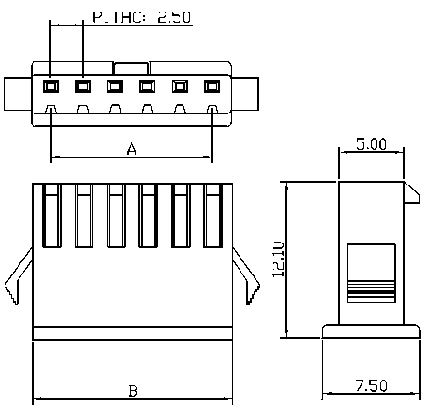

Drawing

For wire mounting. Included contacts
Response part : CJK7606
Current limit : 2 A
Voltage limit : 250 V
Breaking voltage : 800 VAC
Contact resistance : <20 mOm
Contact material : tinned bronze
Conductor diameter : 0,0804 - 0,325mm2 (AWG28-22)
Min. Insulation resistance : 1000 MOm
Operating temperature : -25°C to +85°C
Housing material : nylon 6/6
Flammability class : UL94V-0
Step : 2.5 mm
Dimensions : A=12.5 x B=18mm
