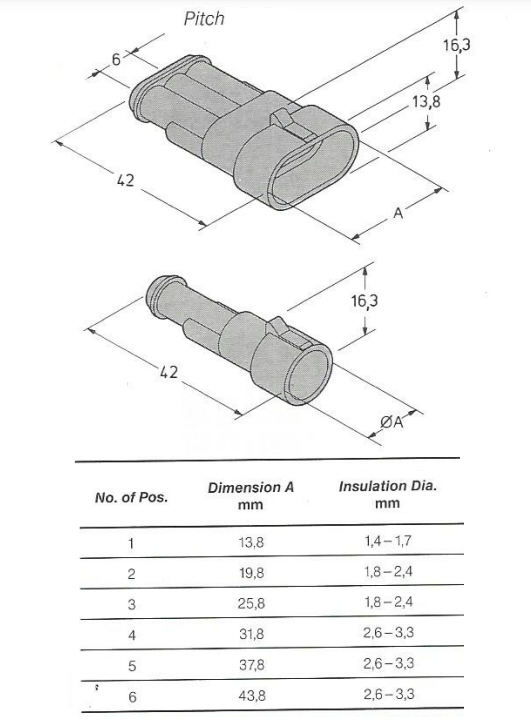

CONNECTOR 1pin Male Superseal AMP
Code CJP/ASK1- Weight 3.00g
E-shop price: 0,70 €
| Amount: | 5+ | 10+ |
| Price: | 0,64 | 0,56 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (1) | |
Item description
A special series of connectors designed for wire-to-wire connections with fixation and mainly used in cars. The use of a rubber sealant between the sides of the connector and for each wire individually provides resistance to aggressive media.
The high quality of the contacts ensures perfect electrical parameters of the connector.
Operating temperature : -40°C to +125°C
Safety class : IP67
Breaking voltage : 1500 VAC
Max. contact current : 14 A
Contact material : tinned bronze
Connector material : polyamide 6.6, reinforced with glass cloth
Conforms to the standards : DIN40050, IEC 529
