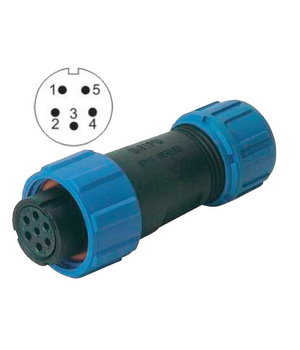

CONNECTOR  WEIPU SP1310/S5, 5pin cable socket ø4÷6.5mm, 5A 180V, IP68 CJP_W1310_L5.jpg

CONNECTOR WEIPU SP1310/S5, 5pin cable socket ø4÷6.5mm, 5A 180V, IP68

Code CJP/W1310/L5
  • Manufacturer WEIPU
  • ID code SP1310/S5
  • Weight 8.00g

E-shop price: 4,80

Amount: 4+ 8+
Price: 4,37 3,86
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (1)
Shop in Kaunas Item available (1)

Description

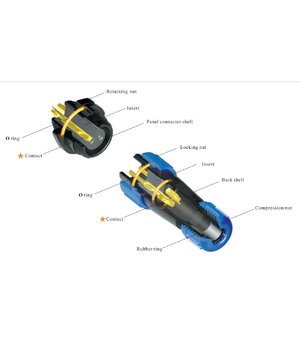

Drawing Datasheet

Type of connector circular
Connector plug
Kind of connector female
Connector series SP13
IP rating IP68
Cable external diameter 4...6.5mm
Current rating 5A
Electrical mounting soldering
Mechanical mounting for cable
Rated voltage 180V
Wire cross section 0.75mm2
Locking system threaded joint, internal thread
Operating temperature -40...85°C
