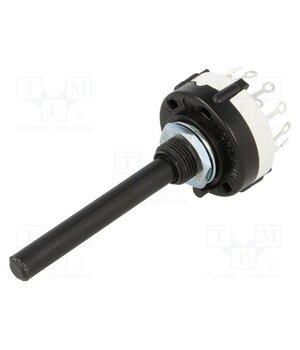

CK1032 Switch: rotary; Pos: 3; 1A/24VAC; 1A/24VDC; Poles number: 4; 30°

• Operating temperature — -30°C…85°C
• Poles number — 4
• Shaft diameter — 6mm
• Mechanical durability — 10kcysles
• Min. insulation resistance — 999MΩ
• —
• Contact plating — silver plated
• —
• Body material — polyamide
• DC contacts rating @R — 0.15A / 250V DC
• AC contacts rating @R — 1A / 24V AC
• Manufacturer — LORLIN
• —
• —
• —
• —
• —
• Stable positions number — 3
• Mounting hole diameter — Ø10mm
• Fastening thread — M10x0,75
• —
• Switches Features — adjustable number of positions
• DC contacts rating @R — 1A / 24V DC
• Contact material — brass
• —
• —
• —
• —
• —
• Leads — for soldering
• Switch of type — rotary
