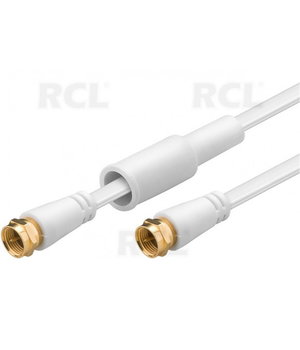

SATELLITE FLAT CABLE 3.5m 80dB, gold plated
Code CKA0903G- Weight 140.00g
E-shop price: 2,40 €
| Amount: | 3+ | 5+ |
| Price: | 2,26 | 2,15 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item is not available (0) | |
Description
Double shielded with high density for interference-free signal transmission
Fully 100 % shielded, encapsulated plug on both sides, protection against dust, dirt and mechanical loads
Gold plated, particularly conductive contact, for loss-free transmission
With weather protection cap
Low bending radius
Installation behind skirting board or under laminate
Technical specifications:
Type F male / male
Contact material gold-plated
Shielding efficiency 80 dB
Cable length 3.5 m
Height of cable sheath 3.8mm
Width of cable sheath 7.2mm
Cable sheath diameter (approx.) 3.8 mm
Inner conductor material CU (copper)
inner conductor, core diameter 0.4
Number of shieldings 2 x
Type 1: shielding foil (aluminum)
Type 2: shielding braid (aluminum) 64x
Impedance 75 ?
Color white
Outer sheath material PVC
