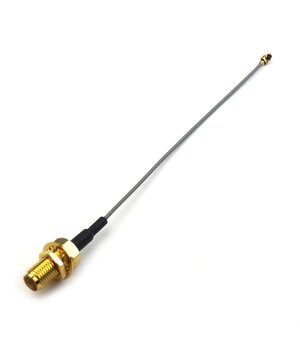

CABLE IPEX (L) <-> SMA (L), 150mm CKA096.jpg

CABLE IPEX (L) <-> SMA (L), 150mm

Code CKA096
  • Weight 5.00g

E-shop price: 2,00

Amount: 5+ 10+
Price: 1,78 1,66
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (2)
Shop in Vilnius Item available (2)
Shop in Kaunas Item available (2)

Description

🔌 Adapter - U.FL (IPEX) to SMA Jack - Straight Adapter with 150mm Cable

Description:
This adapter conveniently connects a U.FL (also known as IPEX) connector to an SMA jack. The straight SMA female connector ensures a solid and stable connection, ideal for antenna applications, frequency testing, or other RF projects. The 150mm cable offers flexibility in component placement.

Technical Specifications: - 🔹 Connectors: U.FL (IPEX) ⟶ SMA jack (female, straight) - 🔹 Cable length: 150 mm - 🔹 SMA type: Female (jack), straight - 🔹 Cable type: 1.13 mm coaxial RF cable - 🔹 Frequency range: Up to 6 GHz - 🔹 Impedance: 50 Ω - 🔹 Applications: Wi-Fi, GPS, GSM, LTE, LoRa, Bluetooth, RF modules

Typical Uses: 📡 Antenna connection
📶 Wireless communications (Wi-Fi, Bluetooth)
🛰️ GNSS / GPS systems
📱 Cellular solutions

Note:
U.FL connectors are small and delicate – recommended for a limited number of mating cycles (approximately 30) to prevent damage.
