Outdoor coax- antenna cable 75Ω, 100dB CKA368J.jpg

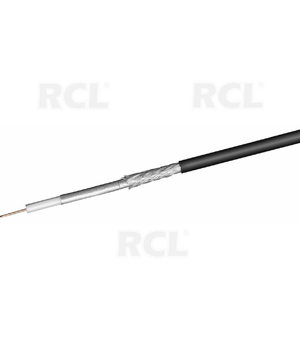

Outdoor coax- antenna cable 75Ω, 100dB

Code CKA368J
  • Weight 37.00g

E-shop price: 0,50

Amount: 25+ 50+ 100+
Price: 0,45 0,44 0,41
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (35)
Shop in Kaunas Item available (14)

Description

UV and water resistant for digital SAT and CATV cable systems
Outer sheath suitable for installation in the ground or on walls
Digital readiness for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
Double signal shielding for adequate long distance protection
Meter scale on the cable simplifies installation in buildings

Technical specifications:

Fire class according to DIN EN 13501-6 Fca
Dielectric diameter 4,8
Inner conductor material CCS 21 (21 % copper-clad steel)
Meter scale
Number of shields 2 x
Type 1, shielding foil (aluminium)
Type 2, shielding braid (aluminium) 128x
Inner conductor, core diameter 1.1
Shielding efficiency 100 dB
Impedance 75 Ohm Outer sheath material PE
Operating temperature -20 °C to 75 °C

Specification
