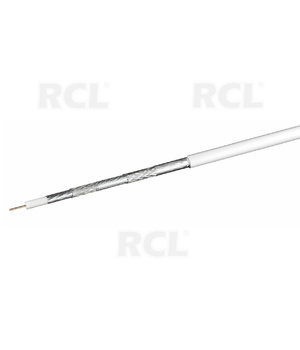

COAXIAL CABLE TV, SAT, 8,1mm 125dB, copper core (Cu) 1,1mm, 5x shield,75
Code CKA381- Weight 65.00g
E-shop price: 0,49 €
| Amount: | 25+ | 50+ |
| Price: | 0,47 | 0,45 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (55) | |
| Shop in Kaunas | Item is not available (0) | |
Item description
Class A++ tested, for digital SAT- and CATV cable systems
Tested and classified as Class A++ (as per EN 50117)
Digital-ready for HDTV using DVB-S/S2, DVB-T/T2, DVB-C/C2
Quintuple signal shield for first class protection over long distances
Inner conductor made of specially conductive and flexible copper
Meter scaling on the cable simplifies building installation
Technical specifications:
Shielding class Class A++
Dielectric diameter 4.8
Cable sheath diameter (approx.) 8.1 mm
Cable length 100 m
Cable type round cable
Inner conductor material CU (copper)
Number of shieldings 5 x
Meter scaling yes
Type 1, shielding foil (aluminum)
Type 2, shielding braid (aluminum) 128x
inner conductor, core diameter 1.1
Type 3, shielding foil (aluminum)
Type 5, shielding foil (aluminum)
Shielding efficiency 125 dB
Type 4, shielding braid (aluminum) 96x
Impedance 75 ?
Outer sheath material PVC
Color white
Operating temperature from -20 °C to 75 °C
