Ultra High Speed Optical HDMI Cable

The Ultra High Speed Optical HDMI Cable is designed for transmission distances of up to 40 m, providing significantly greater flexibility and higher bandwidth compared to conventional copper HDMI cables.

Features

• Supports UHD video transmission up to 8K @ 60 Hz (4320p), with a maximum data rate of 48 Gbit/s and support for ARC, HDCP and 4K 3D content.

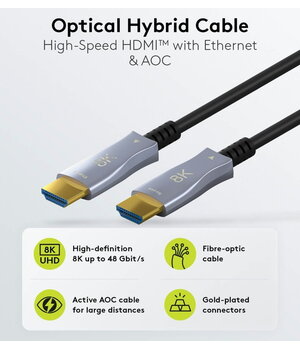

• 8K AOC (Active Optical Cable) with HDMI connectors and a hybrid fibre-optic/copper conductor design for interference-free signal transmission.
• AOC technology enables long-distance signal transmission without quality degradation or additional amplification.

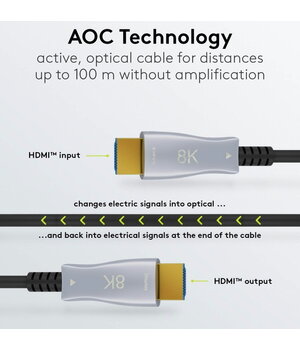

• Electrical signals are converted into optical signals and back into electrical signals at the opposite end of the cable (unidirectional transmission).

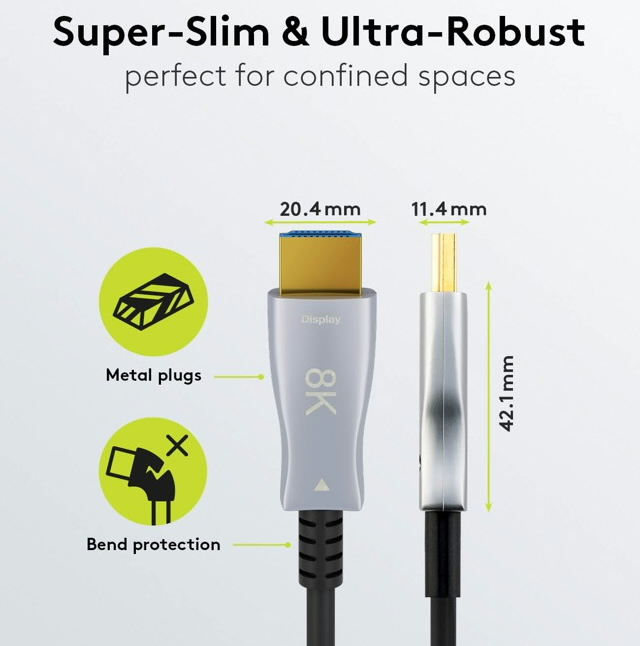

• Slim and durable metal connectors with integrated bend protection for installations in confined spaces.
• Suitable for connecting TVs and monitors to gaming consoles such as PlayStation 5 and Xbox Series X, projectors, Amazon Fire TV and Apple TV devices.

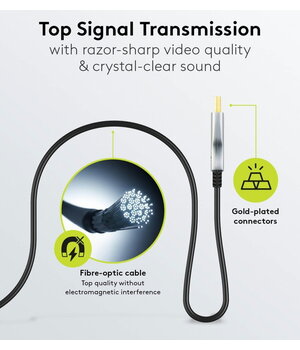

• Fibreglass construction provides excellent flexibility and a very small minimum bending radius.

Technical Specifications

Connectors

• Contact material: Gold-plated
• Connector 1: HDMI male (Type A)
• Connector 2: HDMI male (Type A)

Cable

• Type: Optical Hybrid (AOC)
• Outer diameter: approx. 4.8 mm
• Inner conductor: Hybrid fibre-optic and copper conductor
• Construction: Round cable
• Length: 40 m

Signal Transmission

• Maximum resolution: 8K/60 Hz (7680 × 4320) Full UHD
• Supported video standards:
  • 8K/60 Hz (7680 × 4320)
  • 4K/120 Hz (3840 × 2160)

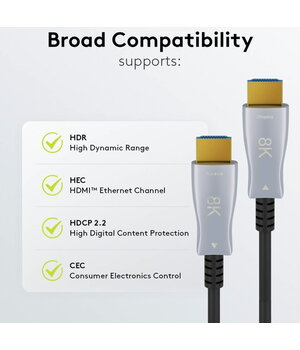

• Supported standards:
  • HDR (High Dynamic Range)
  • HDMI Ethernet Channel (HEC)
  • 3D
  • HDCP 2.2
  • Consumer Electronics Control (CEC)
• Supported audio standards:
  • Enhanced Audio Return Channel (eARC)
  • Audio Return Channel (ARC)
• Maximum data transfer rate: 48 Gbit/s

General

• HDMI Version: 2.1
• Colour: Black
• Material: PVC
• Certifications: CE, WEEE
• Maximum operating temperature: +50 °C
