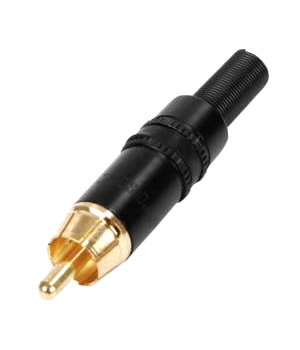

PLUG RCA black, NEUTRIK NYS373-0 CKI149J.jpg

PLUG RCA black, NEUTRIK NYS373-0

Code CKI149J
  • Manufacturer NEUTRIK
  • ID code NYS373-0
  • Weight 19.00g

E-shop price: 2,60

Amount: 3+ 5+
Price: 2,52 2,40
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (7)
Shop in Vilnius Item available (6)
Shop in Kaunas Item available (6)

Description

Datasheet

Plug with gold plated contacts, black chromium shell, chuck type strain relief, color marking ring

Electrical
Contact Resistance: ≤10 mΩ
Insulation Resistance: >2000 MΩ(Initial)
Rated Voltage: 0.5 VAC
Mechanical
Insertion and Withdrawal Force: 5-20N
Lifetime: >5000 Mating Cycles
Material
Pin: Brass / Gold Housing: Copper / Gold Boot: PVC
Ground Contact: H62
Chuck: PA6
Color dividing ring: Rubber
Elastic clamp: ABS
Ground Contact: Gold

Specification
