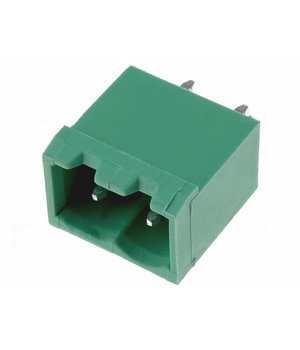

TERMINAL BLOCK 2pin, Male, soldered, 5.08mm

Code CKK102/U
  • Weight 1.50g

E-shop price: 0,1700

Amount: 10+ 50+ 100+
Price: 0,1462 0,1000 0,0898
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (347)
Shop in Vilnius Item available (18)
Shop in Kaunas Item available (21)

Item description

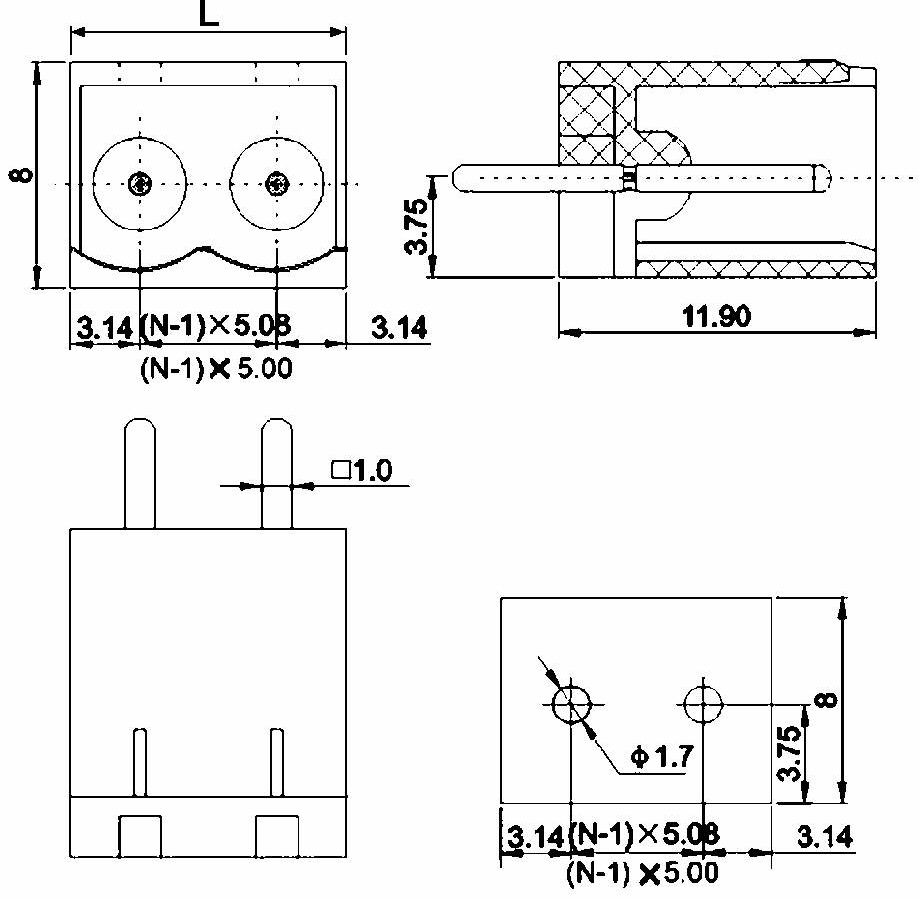

Drawing

Contact plug connector without side walls - can be clamped together.
Allowable voltage : 300 V
Maximum current : 15 A
Dimensions : Width - 10.16mm , Height - 12.3mm , Depth - 8mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max

Specification
