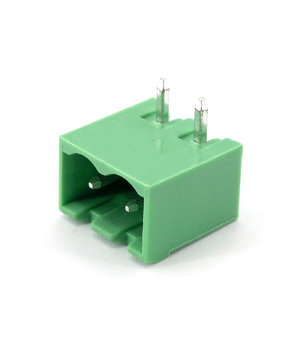

TERMINAL BLOCK 2pin Male, soldered, closed, 5.08m

Code CKK102K/U
  • Weight 1.02g

E-shop price: 0,2000

Amount: 10+ 50+ 100+
Price: 0,1700 0,1117 0,0993
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (152)
Shop in Vilnius Item available (27)
Shop in Kaunas Item available (21)

Item description

Drawing

Contact plug connector. For angled terminals.
Allowable voltage : 300 V
Maximum current : 15 A
Dimensions : width - 12.22mm , height - 7.8mm , depth -12mm
Contact : bronze coated
Body material : PA66 (UL94V-0)
Breakout voltage : 1500 V AC/1 min
Operating temperature : -40°C to +105°C
Soldering : 250°C / 5 sec max

Specification
