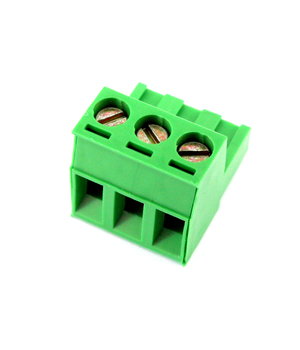

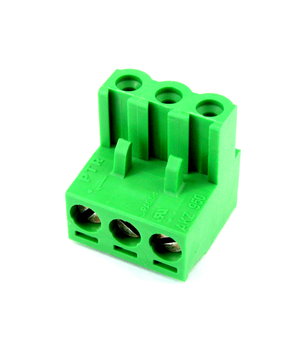

TERMINAL BLOCK 3pin Female for Cable, 5.08mm
Code CKK103L- Weight 2.60g
E-shop price: 0,70 €
| Amount: | 10+ | 50+ | 100+ |
| Price: | 0,62 | 0,43 | 0,40 |
| 0,49 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (63) | |
| Shop in Vilnius | Item available (34) | |
| Shop in Kaunas | Item available (23) | |
Item description
Allowable voltage : 300 V
Maximum current : 15 A
Dimensions : Width - 15.24mm , Height - 15.2mm , Depth - 17.7mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max
