TERMINAL BLOCK 6pin Male, soldered, 5.08mm
Code CKK106K- Weight 6.00g
E-shop price: 0,50 €
| Amount: | 10+ | 25+ | 50+ |
| Price: | 0,47 | 0,45 | 0,45 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (5) | |
| Shop in Kaunas | Item available (6) | |
Description
Contact plug connector. Outputs angled.
Allowable voltage : 300 V
Maximum current : 15 A

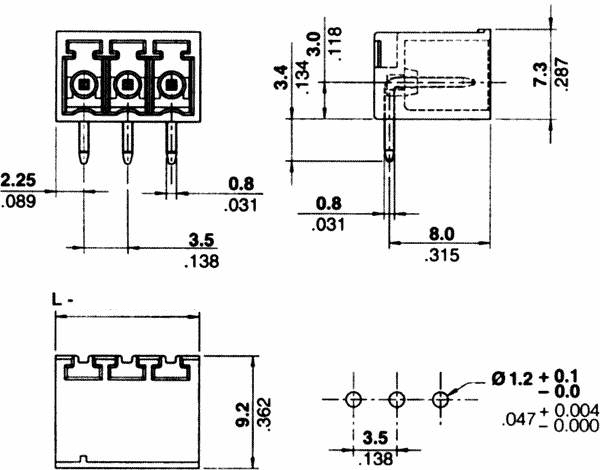

Dimensions : Width - 32.54mm , Height - 7.8mm , Depth -12mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max
