TERMINAL BLOCK 10pin male, 5.08mm
Code CKK110/U- Weight 4.00g
E-shop price: 0,90 €
| Amount: | 10+ | 25+ | 50+ |
| Price: | 0,79 | 0,59 | 0,55 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (3) | |
| Shop in Vilnius | Item available (7) | |
| Shop in Kaunas | Item available (2) | |
Item description
Contact plug connector with side walls.
Allowable voltage : 300 V
Maximum current : 15 A

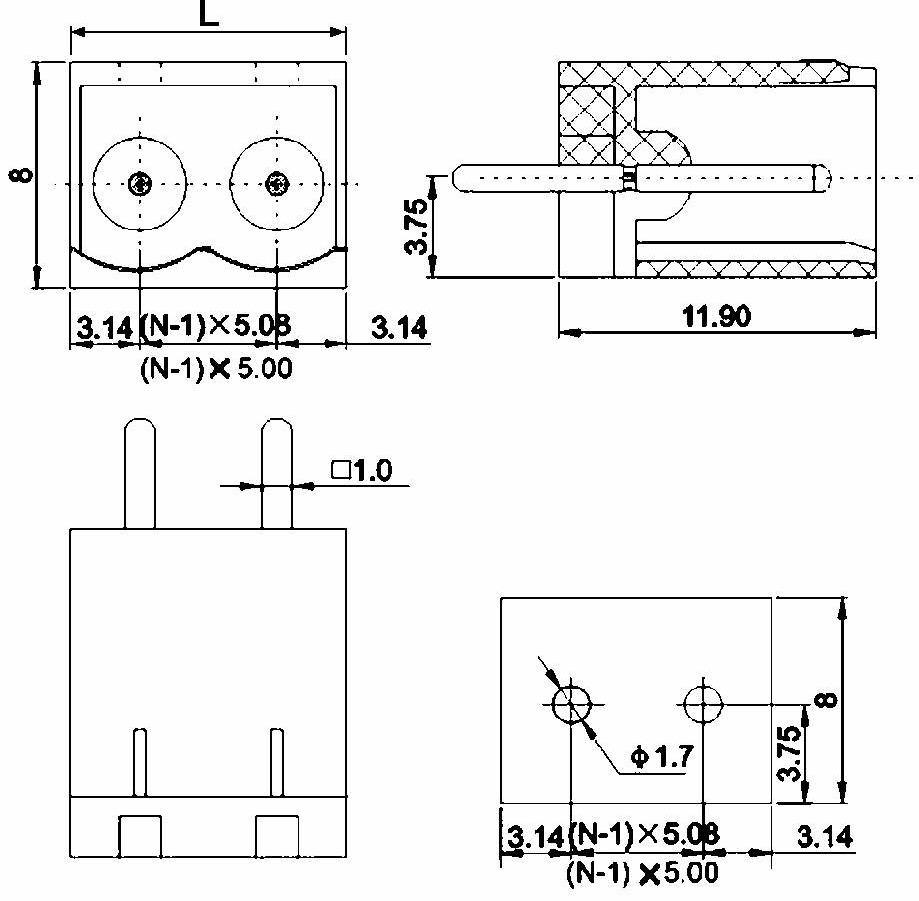

Dimensions : Width - 50.8mm , Height - 12.3mm , Depth - 8mm
Contact : bronze coated
Housing material : PA66 (UL94V-0)
Breaking voltage : 1500 V AC/1 min.
Operating temperature : from -40°C to +105°C
Soldering : 250°C / 5 sec. max
