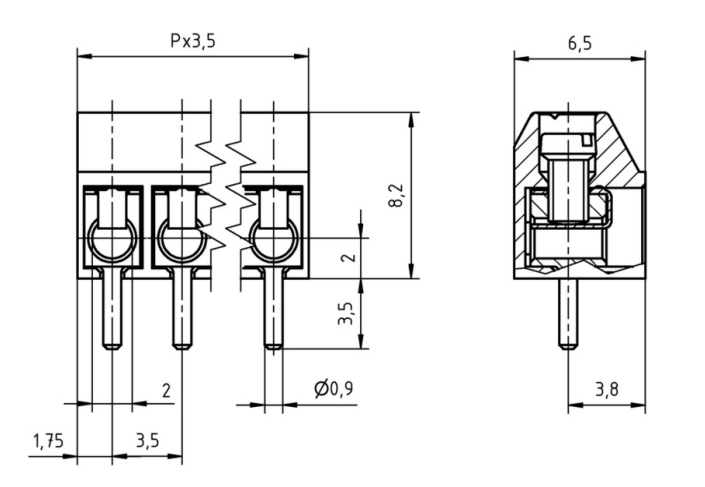

TERMINAL BLOCK 2pin, L=3.5mm h=8.2mm W=6.5mm
Code CKK23S- Weight 1.00g
E-shop price: 0,39 €
| Amount: | 10+ | 25+ |
| Price: | 0,37 | 0,35 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (17) | |
| Shop in Kaunas | Item available (23) | |
Description
Rated Voltage: 125V
Rated Current: 10A
Rated Cross Section: 0,2...1mm2
Insulation Resistance: 500MOhm/500V DC
Dielectric Strength, Min.: 2000V AC, 1 Min.
Insulating Material: Polyamide 66
Temperature Range: -40°C...+100°C
