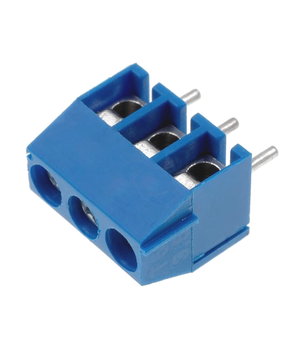

TERMINAL BLOCK 3pin, L=3.5mm h=8.4mm
Code CKK33- Weight 1.50g
E-shop price: 0,35 €
| Amount: | 10+ | 50+ | 100+ |
| Price: | 0,31 | 0,2622 | 0,2439 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (75) | |
| Shop in Vilnius | Item available (50) | |
| Shop in Kaunas | Item available (57) | |
Item description
The blocks can be connected in sections.
Lead pitch : 3.5 mm
Operating voltage : 300 V
Allowable current : 10 A
Dimensions : 8.4 x 6.8 mm
Contact material : fractured brass
Housing material : PA66 (UL94V-0)
Breakthrough voltage : 1500 VAC/1 min
Diameter of the connected wire : up to 1 mm2
Operating temperature : -40°C to +105°C
Soldering : 250°C / 5 sec
Lead length : 4.5...5 mm
