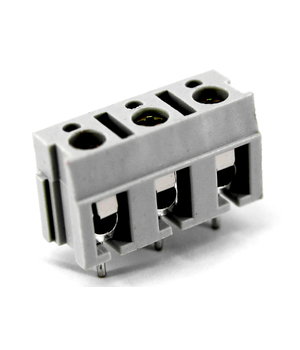

TERMINAL BLOCK 3pin, L=7.5mm, h=12mm
Code CKK37- Weight 4.00g
E-shop price: 0,40 €
| Amount: | 5+ | 10+ |
| Price: | 0,36 | 0,33 |
Minimum order: 1 Repeatability : 1
Amount
Cleanup sale, availible quantity: 6pcs.
Cleanup sale, availible quantity: 6pcs.
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item available (5) | |
Item description
Contact pad for soldering , pitch - 7.5mm
Can be soldered together.
Allowable voltage : 250 V
Maximum current : 16 A
Dimensions : 21x12,5 x 9 mm
Contact material : bronze coated
Housing material : PBT (UL94V-0)
Breakthrough voltage : 1500 V AC/1 min.
Wire diameter : max 1,5 mm2
Operating temperature : -30°C - +120°C
Soldering : 250°C / 5 sec. max
