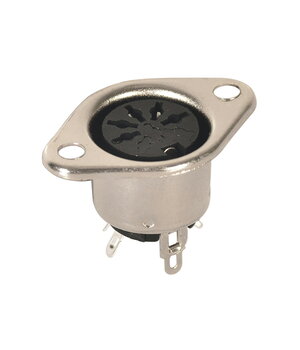

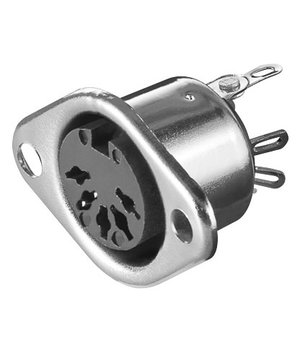

SOCKET DIN 5pin, Panel mounting 180°
Code CLI525- Weight 5.00g
E-shop price: 0,70 €
| Amount: | 5+ | 10+ |
| Price: | 0,62 | 0,55 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (36) | |
| Shop in Vilnius | Item available (10) | |
| Shop in Kaunas | Item available (9) | |
Item description
· Rating: 1A 100VAC / 2A 12VDC
· Orientation: straight
· Contact resistance: 30mΩ Max. (initial)
· Insulation resistance: 50MΩ Min. at 500VDC
· Withstand voltage: 1000VAC for 1 minute
· Insertion force: 4.0KG Max.
· Withdrawal force: 1-3.5KG
· Mounting type: panel mount
· Contact termination: solder
