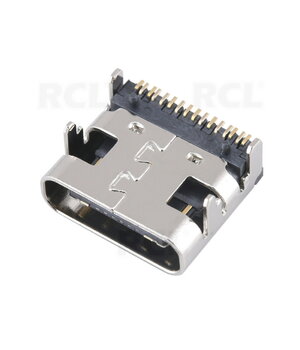

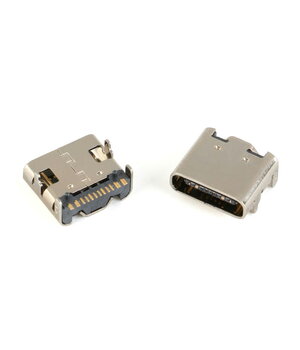

SOCKET USB C, SMT angled 90°, 16pin
Code CLI844- Weight 1.00g
E-shop price: 0,50 €
| Amount: | 10+ | 20+ |
| Price: | 0,43 | 0,0944 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Item description
Insertion force: 5N-20N MAX
Pulling force: 6N-20N MIN
Rated current: 3A
Shell plating:nickel plating
Rated voltage: 30V AC
Contact Impedance: 40MΩ MAX
Insulation resistance: 100MΩ MIN
Operating temperature: -40°C to +85°C
Terminal: gold plated
Plastic core: LCP
