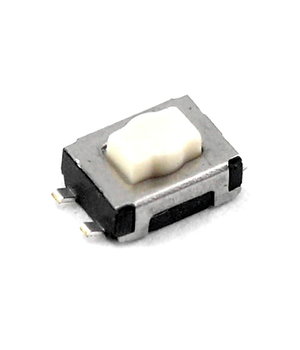

MICROSWITCH OFF-(ON) 50 mA / 12 V DC 4.7x3.5x2.5mm
Code CPR021- Manufacturer CANAL ELECTRONIC
- ID code TS47-25MV160
- Weight 0.17g
E-shop price: 0,60 €
| Amount: | 5+ | 10+ |
| Price: | 0,53 | 0,52 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (11) | |
| Shop in Kaunas | Item available (9) | |
Description
Contacts configuration: SPST-NO
Operating Force: 1.6N
Body material: stainless steel, thermoplastic
Body dimensions: 4.7x3.5mm
Button height: 2.5mm
Terminal pitch: 1.7x5.15mm
Operating temperature: -20...70°C
Button shape: rectangular
Terminals material: brass
Terminals plating: silver plated
Leads: for PCB
Contact material: steel
Max. contact resistance: 500mΩ
Min. insulation resistance: 1000MΩ
Contact plating: silver plated
Mechanical durability: 100000 cycles
Soldering temperature: 230°C / 5 s
