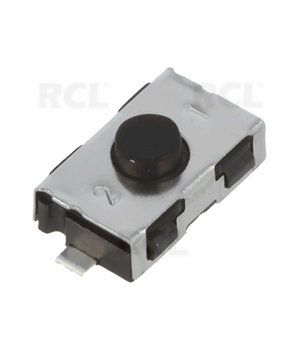

MICROSWITCH SMD square OFF-(ON), 0.05A/32VDC, IP50, 6x3.8x1.75mm
Code CPR023- Manufacturer C&K
- ID code KSR231G LFS
- Weight 0.30g
E-shop price: 0,90 €
| Amount: | 10+ | 20+ |
| Price: | 0,79 | 0,77 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (14) | |
| Shop in Vilnius | Item available (10) | |
| Shop in Kaunas | Item available (18) | |
Description
- Type of switch microswitch TACT
- Switch. method OFF-(ON)
- Contacts layout SPST-NO
- Button shape round
- IP rating IP50
- Mounting SMT
- Leads for soldering
- Stable positions 1-position
- Positions 2
- Mechanical durability 1·105 cycles
- DC contacts rating @R** 0.05A / 32V DC
- Min. insulation resistance 1 GΩ
- Max. contact resistance: 100 mΩ
- Button height 0.75 mm
- Operating temperature -40...85°C
- Body dimensions 6x3.8 mm
- Contact plating silver plated
