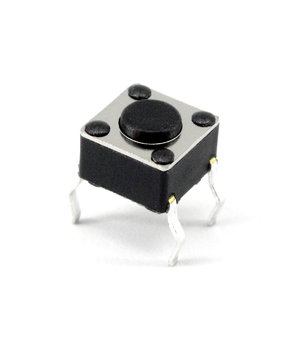

MICROSWITCH ON square, h=4.3mm
Code CPR028- Weight 0.20g
E-shop price: 0,1500 €
| Amount: | 10+ | 25+ | 50+ | 100+ |
| Price: | 0,1275 | 0,0719 | 0,0639 | 0,0474 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (178) | |
| Shop in Vilnius | Item available (40) | |
| Shop in Kaunas | Item available (16) | |
Description
Contacts configuration: SPST-NO
Operating Force: 1N

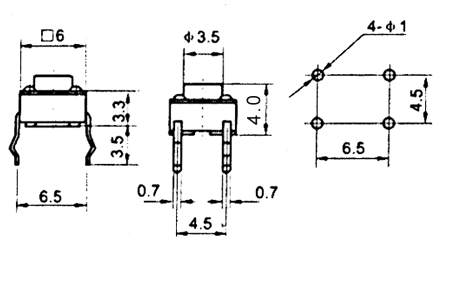

Body dimensions: 6x6mm
Button height from PCB: 4.3mm
Terminal pitch: 4.5x6.5mm
Operating temperature: -25...70°C
Button shape: round
Actuator colour: black
Leads: for PCB, straight
Max. contact resistance: 50mΩ
Min. insulation resistance: 100MΩ
Soldering temperature: 250°C
