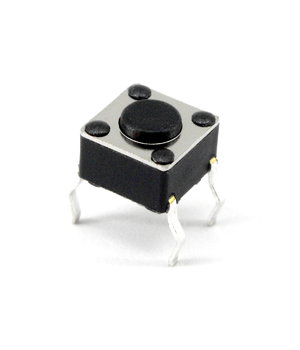

MICROSWITCH OFF-(ON) 50mA / 12VDC square 6x6mm, h=5mm
Code CPR030- Weight 0.30g
E-shop price: 0,1500 €
| Amount: | 10+ | 25+ | 50+ |
| Price: | 0,1275 | 0,0265 | 0,0235 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (497) | |
| Shop in Vilnius | Item available (180) | |
| Shop in Kaunas | Item available (40) | |
Description
Contacts configuration: SPST-NO
Operating Force: 1.6N

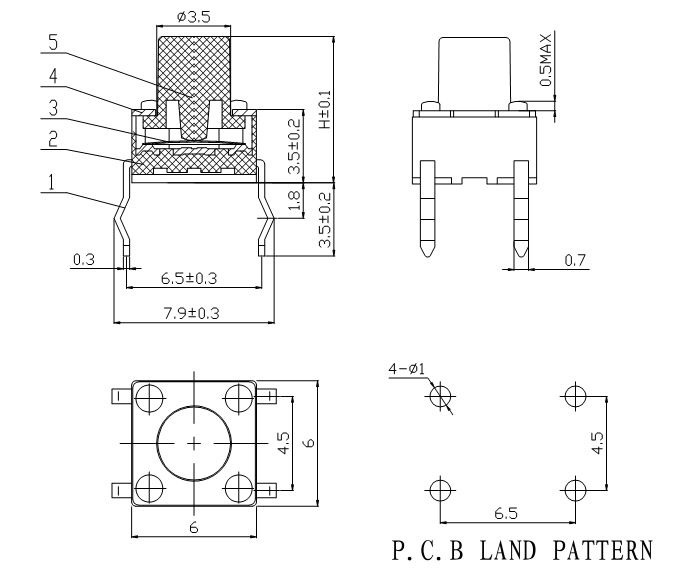

Body dimensions: 6x6mm
Button height from PCB: 5mm
Terminal pitch: 4.5x6.5mm
Operating temperature: -25...70°C
Button shape: round
Actuator colour: black
Leads: for PCB, straight
Max. contact resistance: 50mΩ
Min. insulation resistance: 100MΩ
Soldering temperature: 250°C
