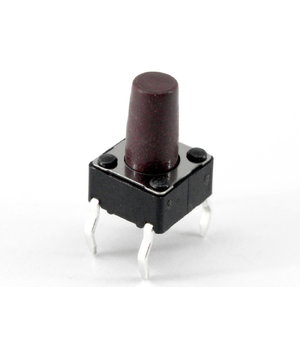

MICROSWITCH OFF-(ON) 50mA / 12VDC square, 6x6mm, h= 9.5/6mm CPR036.jpg

MICROSWITCH OFF-(ON) 50mA / 12VDC square, 6x6mm, h= 9.5/6mm

Code CPR036
  • Weight 0.30g

E-shop price: 0,1500

Amount: 25+ 50+ 100+ 200+
Price: 0,1275 0,0299 0,0266 0,0197
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (80)
Shop in Vilnius Item available (6)
Shop in Kaunas Item available (26)

Description

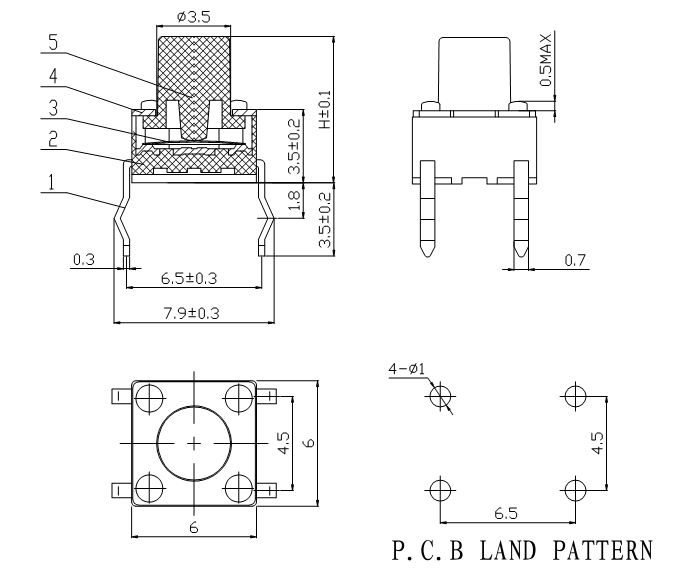

Drawing

Contacts configuration: SPST-NO
Operating Force: 1.6N
Body dimensions: 6x6mm
Button height from PCB: 9.5mm
Terminal pitch: 4.5x6.5mm
Operating temperature: -25...70°C
Button shape: round
Leads: for PCB, straight
Max. contact resistance: 50mΩ
Min. insulation resistance: 100MΩ
Soldering temperature: 250°C
