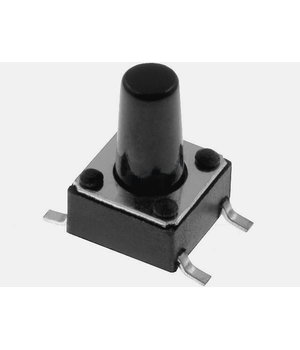

MICROSWITCH SMD OFF-(ON) 50mA / 12VDC square, 6x6mm, h= 9.5/6mm
Code CPR036S- Weight 0.10g
E-shop price: 0,2000 €
| Amount: | 25+ | 50+ | 100+ | 200+ |
| Price: | 0,1720 | 0,1291 | 0,1159 | 0,0938 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (106) | |
| Shop in Vilnius | Item available (13) | |
| Shop in Kaunas | Item available (20) | |
Description
Contacts configuration: SPST-NO
Operating Force: 1.6N
Body dimensions: 6x6mm
Button height from PCB: 9.5mm
Terminal pitch: 4.5x9mm
Operating temperature: -30...85°C
Button shape: round
Leads: for soldering
Mechanical durability: 100000 cycles
