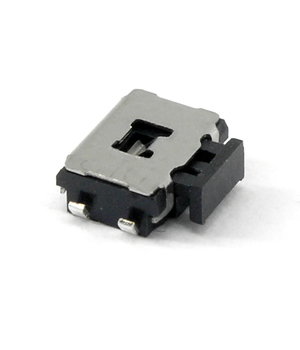

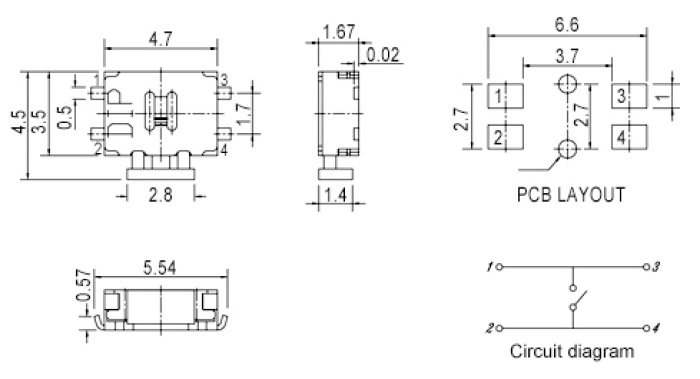

MICROSWITCH SMD OFF-(ON) 50mA / 12VDC, right-angled, 4.7x3.5mm
Code CPR040- Weight 2.00g
E-shop price: 0,45 €
| Amount: | 5+ |
| Price: | 0,39 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (6) | |
| Shop in Kaunas | Item available (6) | |
Item description
-Contact Resistance: 100 mΩ Max.
-Insulation Resistance: 100MΩ min. at 500VDC
-Dielectric Resistance: 250VAC for 1 minute
-Insulation Resistance: 0.3 mm
-Operating Force: 220±70gf
-Operating Temperature: -25°C to +70°C
-Drying Temperature: -30°C to +80°C
-Electrical lifetime: 100 000 cycles
Application areas
-Automotive
-Portable electronic devices
-Control panel
