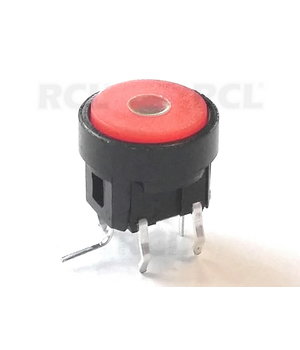

MICROSWITCH OFF-(ON) 12V 0.05A round 10mm orange
Code CPR081OG- Weight 0.52g
E-shop price: 1,30 €
| Amount: | 10+ | 25+ | 50+ | 100+ |
| Price: | 1,18 | 1,01 | 0,99 | 0,93 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (495) | |
| Shop in Vilnius | Item available (116) | |
| Shop in Kaunas | Item available (135) | |
Description
Illuminated tact switch
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 250VDC
·Dielectric strength: 250VAC for 1 minute
·Operating force: 200±50gf
·Operating temperature: -20°C to +70°C
·Soldering temperature: 260°C Max. for 3 seconds
·Ambient humidity: 75% RH Max.
·Operating life: 100,000 cycles Min.
Materials
·Terminal: Brass, Ag plated
·Housing: Nylon 66
·Movable blade: SUS301, Au plated
·Bottom: PBT
·Cap: ABS
·Switch body: Nylon 66
