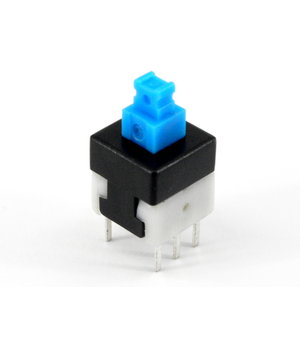

PUSH BUTTON SWITCH ON-OFF 0.1A / 30VDC 7x7mm l=2x3mmm
Code CPR098- Weight 1.00g
E-shop price: 0,35 €
| Amount: | 10+ | 25+ | 50+ |
| Price: | 0,30 | 0,1516 | 0,1347 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (9) | |
| Shop in Vilnius | Item available (15) | |
| Shop in Kaunas | Item available (16) | |
Description
·Contact rssistsnce: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 250VDC
·Withstand voltaqe: 250VAC for 1 minute
·Position travel: 1.5±0.2mm
·Mechanical life: 100,000 cycles
·Electrical life: 10,000 cycles
·Operating force: 160±80 gf
·Operating temperature: -25°C to +65°C
·Soldering temperature: 350°C~360°C for 3 second
·Ambient humidity used: 85% RH Max.
Materials
·Stem: POM
·Case: POM
·Base: PBT
·Terminals: C2680
·Sprint plate: C5210
·Spring: SUS304
·Fixed rod: SUS304
