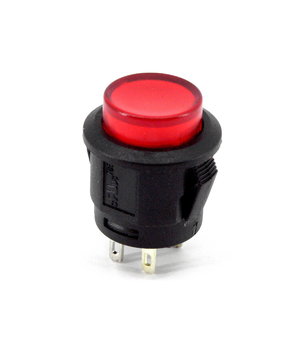

PUSH BUTTON SWITCH OFF-(ON), with 12V LED, red, round
Code CPR158R- Manufacturer SCI
- ID code R13-523AL-05-BR-L-1
- Weight 3.20g
E-shop price: 2,90 €
| Amount: | 5+ | 10+ |
| Price: | 2,64 | 2,41 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (6) | |
| Shop in Vilnius | Item available (5) | |
| Shop in Kaunas | Item available (5) | |
Description
Switch type push-button
Stable positions number 1-position
Contacts configuration SPST-NO
AC contacts rating
(at resistance load) 1.5 A / 250 VAC
Actuator colour red
Backlight colour red
Illumination LED 12V DC
Leads for soldering
Switching method OFF-(ON)
Operating temperature -25...70°C
Mounting hole diameter Ø16mm
Mounting on panel
Max. contact resistance: 50mΩ
Panel thickness max 3mm
Body dimensions Ø18 x 13mm
Flammability rating UL94V-2
Terminals plating silver plated
AC test voltage 1.5kV
