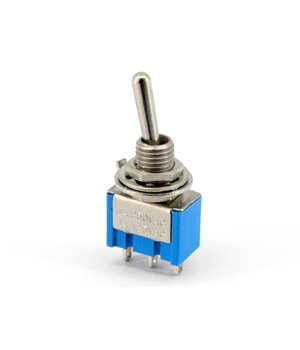

TOGGLE SWITCH MTS102, 3A / 250VAC, 3pin, ON-ON
Code CPR210- Weight 3.10g
E-shop price: 0,95 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 0,82 | 0,65 | 0,57 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (17) | |
| Shop in Kaunas | Item available (24) | |
Description
Contacts configuration SPDT
Switching method ON-ON
AC contacts rating 3A / 250V AC
Leads for soldering
Operating temperature -55...85°C
Kind of toggle with plastic protector
Mounting hole diameter Ø6mm
Knob height 11mm
Max. contact resistance: 20mΩ
Body dimensions 12.5x6.5x9.5mm
Electrical life 20000cycles
