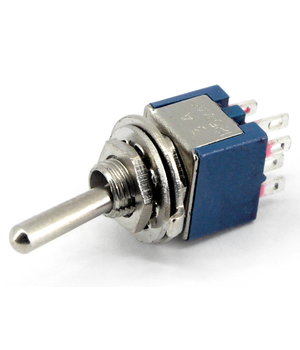

TOGGLE SWITCH MTSN202, 1A / 250VAC, 2x ON-ON mini
Code CPR229- Weight 3.10g
E-shop price: 1,30 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,14 | 0,80 | 0,75 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (17) | |
| Shop in Kaunas | Item available (11) | |
Item description
Number of positions 2
Stable positions number 2-position
Contacts configuration DPDT
Leads for soldering
Operating temperature -55...65°C
Kind of toggle round
Mounting hole diameter Ø5mm
Knob height 9.4mm
Max. contact resistance: 20mΩ
Body dimensions 8.3x9.2x8.6mm
Electrical life 20000cycles
