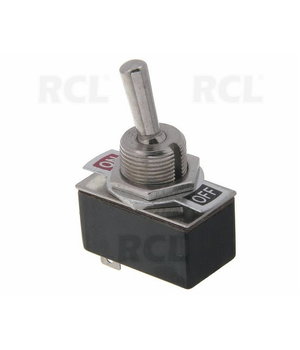

TOGGLE SWITCH 2A 250VAC, 4A 125VAC, 2pin, ON-OFF
Code CPR265- Weight 15.80g
E-shop price: 1,20 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,06 | 0,86 | 0,80 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (8) | |
| Shop in Vilnius | Item available (6) | |
| Shop in Kaunas | Item available (9) | |
Item description
·Circuit: SPST
·Mounting type: Panel mount
·Termination: Tab
·Contact resistance: 50mΩ Max
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operating temperature: -20°C to +65°C
·Electrical life: 20,000 make and break cycles at full load
