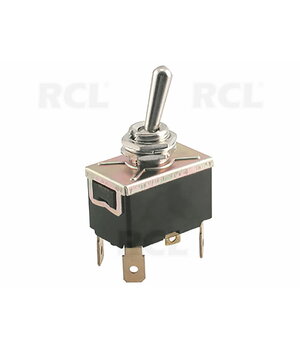

TOGGLE SWITCH 10A 250VAC, 4pin, 2x ON-OFF
Code CPR267D- Weight 33.00g
E-shop price: 2,95 €
| Amount: | 5+ | 10+ |
| Price: | 2,77 | 2,64 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (112) | |
| Shop in Vilnius | Item available (9) | |
| Shop in Kaunas | Item available (11) | |
Item description
·Contact configuration: DPST
·Mounting type: Panel mount
·Terminal type: Tap
·Contact resistance: 20mΩ Max.
·Insulation resistance: 200MΩ Min. at 500VDC
·Withstand voltage: 1500VAC or more
