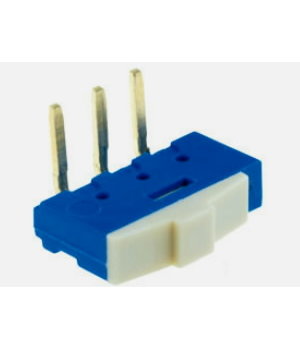

SLIDE SWITCH 0.5A 12VDC, 3pin, right-angled mini, ON-ON
Code CPR290- Weight 0.30g
E-shop price: 1,00 €
| Amount: | 4+ | 8+ |
| Price: | 0,91 | 0,85 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (13) | |
| Shop in Vilnius | Item available (7) | |
| Shop in Kaunas | Item available (10) | |
Description
• Attachable
• All plastic parts flame-resistant in accordance with UL94V-0
Switching Capacity: 1mA, 10mV, Min.
Contact Resistance, Max.: 30mOhm
Dielectric Strength: 2mA, 500V DC/1min.
Capacitance, Max.: 1,5pF
Insulation Resistance (500V DC): 10000MOhm/1min.
Operations: 10000
Operating Temperature: -25...+70°C
Soldering Temperature: 230°C/3s
Soldering Temperature, Max.: 245°C
Vibration Test: Normal Operation 10...60Hz, 1,5mm Movement
Corrosion Test (Salt Solution): 35°C, 5%/24h
